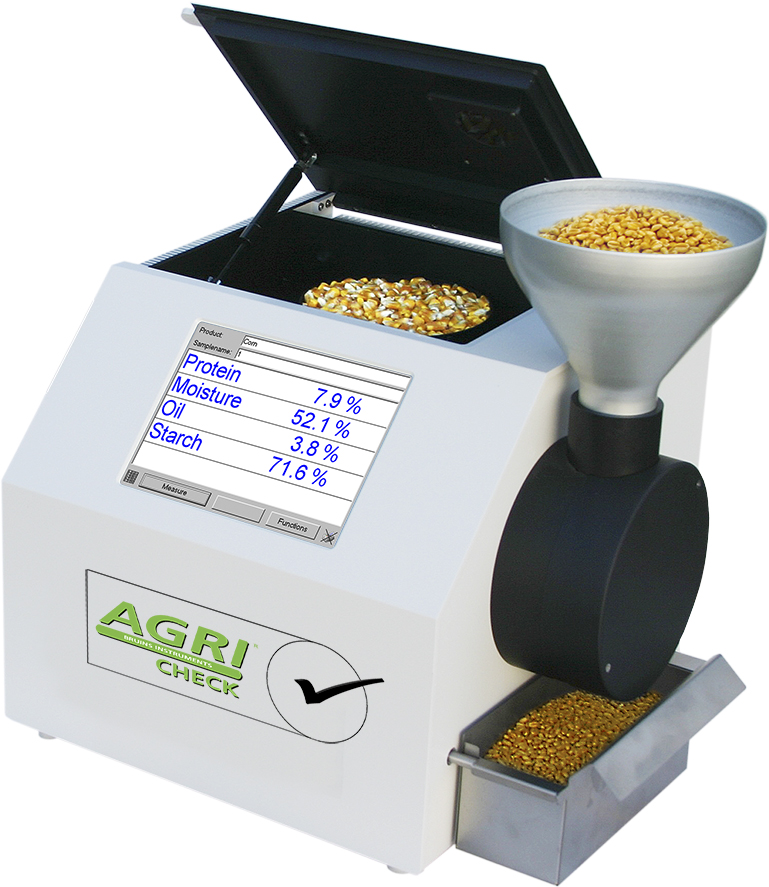

AgriCheck XL

The AgriCheck XL is designed to measure all kinds of whole grain and oil seeds such as Wheat, Durum, Barley, Corn, Soybeans, Rapeseeds, Brown Rice, Milled Rice, Rough Rice, Oats, Rye, Triticale, Sorghum and others.With his sample dish for high moisture samples it allows to measure up to 60 % Moisture and products such as wet Grain and Green Malt and Oilseeds.

Parameters

Depending on the product all Analyzers of Bruins Instruments are designed to measure Moisture, Protein, Oil, Starch, Fibre, Gluten, Zeleny, Amylose, FFA and others.Our Application division can develop calibrations for almost any significant component or property of your particular product.

Features and Benefits

The high moisture cell can be used for small amount of sample. Just a volume of 30 – 100 ml is needed for the measuring dish.Our long experience in building Whole Grain Analyzer combined with great experience in calibration development gives an instrument with high accuracy and trustable results.The high precision of the linear monochromator allows Bruins Instruments to use the same calibration on all our Whole Grain Analyzer. Our patented monochromator system gives reliable measurements over decades.The intuitive software and a large Touchscreen makes the Analyzer easy to use. The operator just has to select the product and fill the grain into the funnel.With the Network option data can be transferred directly to every workstation and it is possible to service the instruments anywhere in the world at any time.For customer specific products Bruins Instruments offers a free of charge calibration service for one year and up to 3 products, if customer supplies spectra and reference data.

Options

Test Weight –  This optional accessory automatically determines the specific weight of the grain. The value is automatically added to the report.

Specifications

Dimensions:                  385 X 420 X 385 mm (15.2 X 16.5 X 12.6 in)

Weight:                          24 kg     (53 lbs)

Voltage:                         220-240 V or 100-120 V 50/60 Hz

Power:                           45 W

Analysis time:                 45 s

Sample size:                  650 ml

Analysis principle:          scanning Monochromator; Transmission

Sample Presentation:     automatic feed with multiple sub-sample measurements

Wavelength range:          730  - 1100 nm

Data increment:              0.5 nm

Interfaces:                     USB, Ethernet, Centronics

Protection:                     dust and humidity protected

Accessories

Ticket Printer, Barcode reader and a separate keyboard can be delivered together with the Analyzer.
